FGUT-A 16

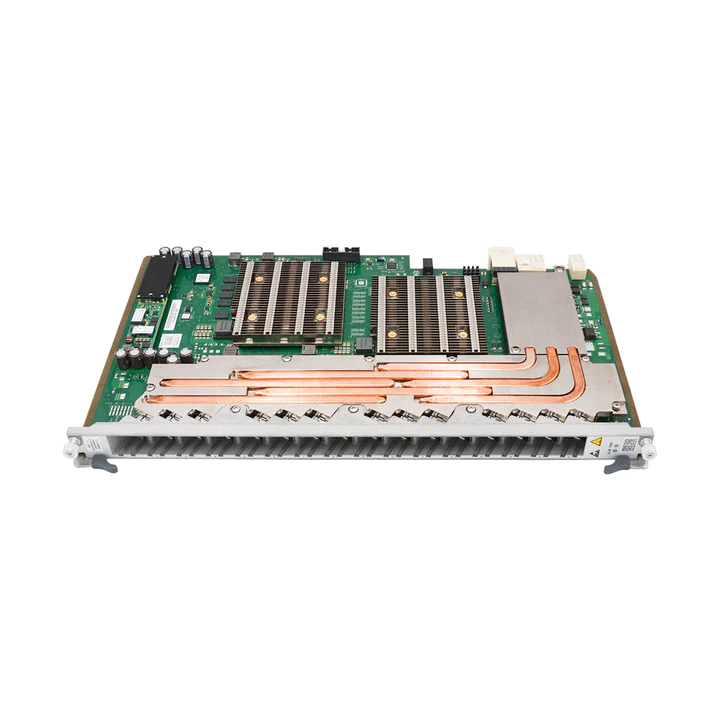

NOKIA FGUT-A 16-port XGS-PON and GPON combo Board for Nokia Alcatel-Lucent 7360 ISAM FX series OLT
Galería
Descargas:
| Especificación | |
| Puertos de servicio | |
| Puerto GPON | 16 puertos XGS-PON y GPON |
| Módulo XGS-PON & GPON Combo PON Clase C + | |
| Tipo | Módulo óptico bidireccional de una fibra |
| Longitud de onda operativa | GPON channel: Tx: 1490 nm Rx: 1310 nm XG-PON & XGS-PON channel: Tx: 1577 nm Rx: 1270 nm |
| Encapsulation Type | SFP+ |
| Port Rate | GPON channel: Tx: 2.488 Gbit/s Rx: 1.244 Gbit/s XGS-PON channel: Tx: 9.953 Gbit/s Rx: 9.953/2.488Gbit/s |
| Minimum Output Optical Power | GPON channel: 3 dBm XGS-PON channel: 5 dBm |
| Maximum Output Optical Power | GPON channel: 7 dBm XGS-PON channel: 8 dBm |
| Maximum Receiver Sensitivity | GPON channel: -32 dBm XG-PON channel: -30.5 dBm XGS-PON channel: -29 dBm |
| Optical Connector Type | SC |
| Optical Fiber Type | Single-mode |
| Overload Optical Power | GPON channel: -12 dBm XG-PON channel: -10 dBm XGS-PON channel: -8 dBm |
| Extinction Ratio | 8.2 dB |
| Function | |
| Forwarding capability | 200 Gbit/s |
| Rate mode | Symmetric rate |
| T-CONTs per PON port | GPON: 1024 XG(S)-PON: 2048 |
| Service flows per PON board | 16352 |
| Maximum frame size | 2052 bytes 9216 bytes (jumbo frame enabled) |
| Maximum number of MAC addresses | 131072 |
Maximum distance difference between two ONUs under the same PON port | 40 km |
| Device Specifications | |
| Dimensions (W x D x H) | 23.30 mm * 257.90 mm * 399.20 mm |
| Power Consumption and Maximum Frame Size | |
| Power Consumption | Static: 48 W Maximum: 98 W |
| Operating temperature | -40°C to +65°C |
